14 SFA open-bored mini piles and reinforced concrete ground beams for a new house beside an existing one in Harpenden, Hertfordshire. All 14 piles were integrity tested and passed.
Geovex installed the piled foundations and reinforced concrete ground beams for a new SIP-panel house in Harpenden, Hertfordshire, built beside an existing house. Our team did both the piling and the beams.
The piles are Sectional Flight Auger (SFA) open-bored mini piles, cast in place. The client asked for open-bored piles to keep noise and vibration down beside the neighbouring houses. There are 14 piles of 300mm diameter, each designed for a working load of 150kN. Each pile has a cage of four H12 bars. The piles were bored with a Hutte piling rig on 23 and 24 September 2026.
The ground is made ground over very stiff clay, with tree roots in the upper clay. A former swimming pool lay under part of the footprint. The foundation design had been changed to ground beams carried on piles.

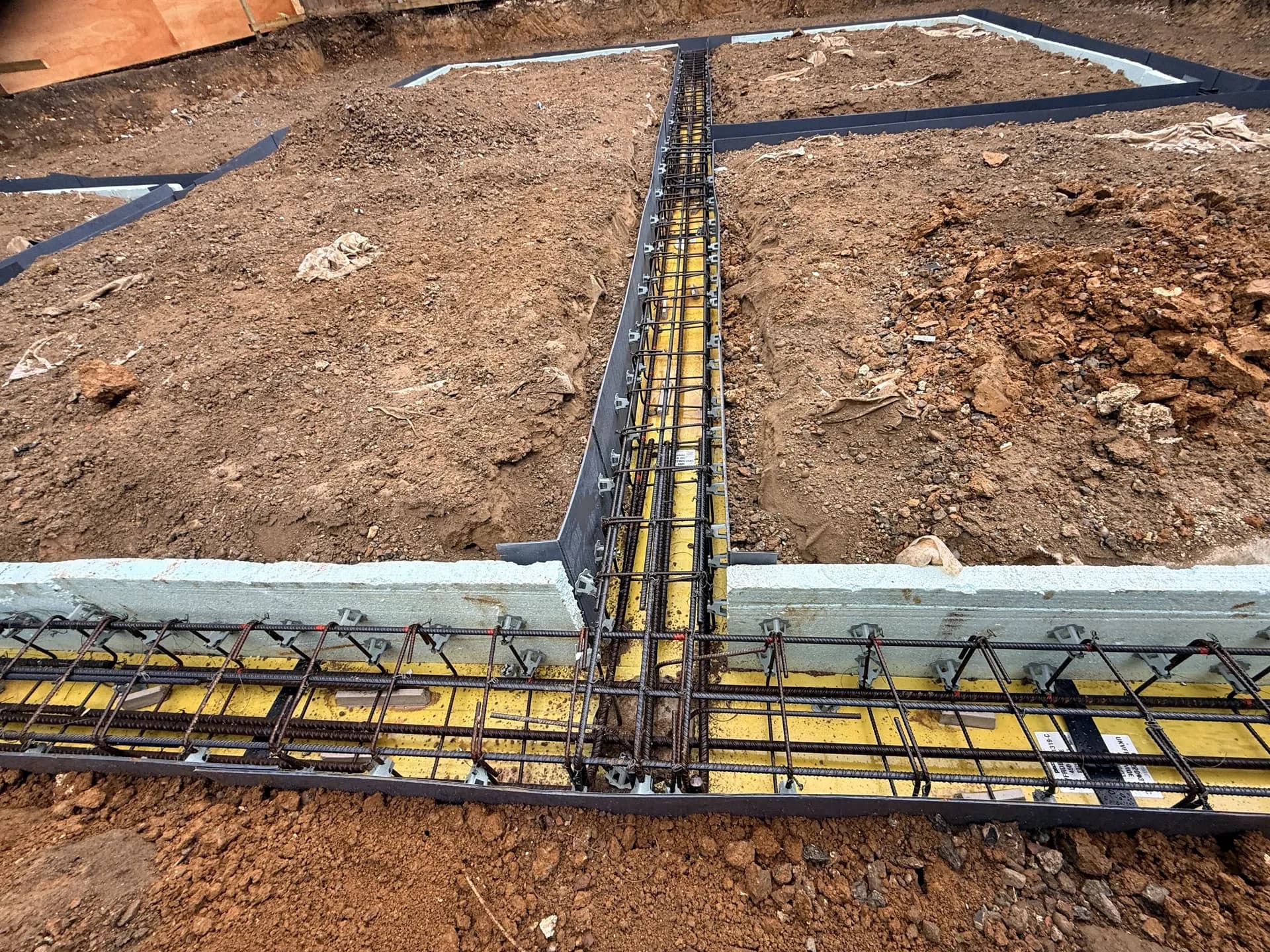

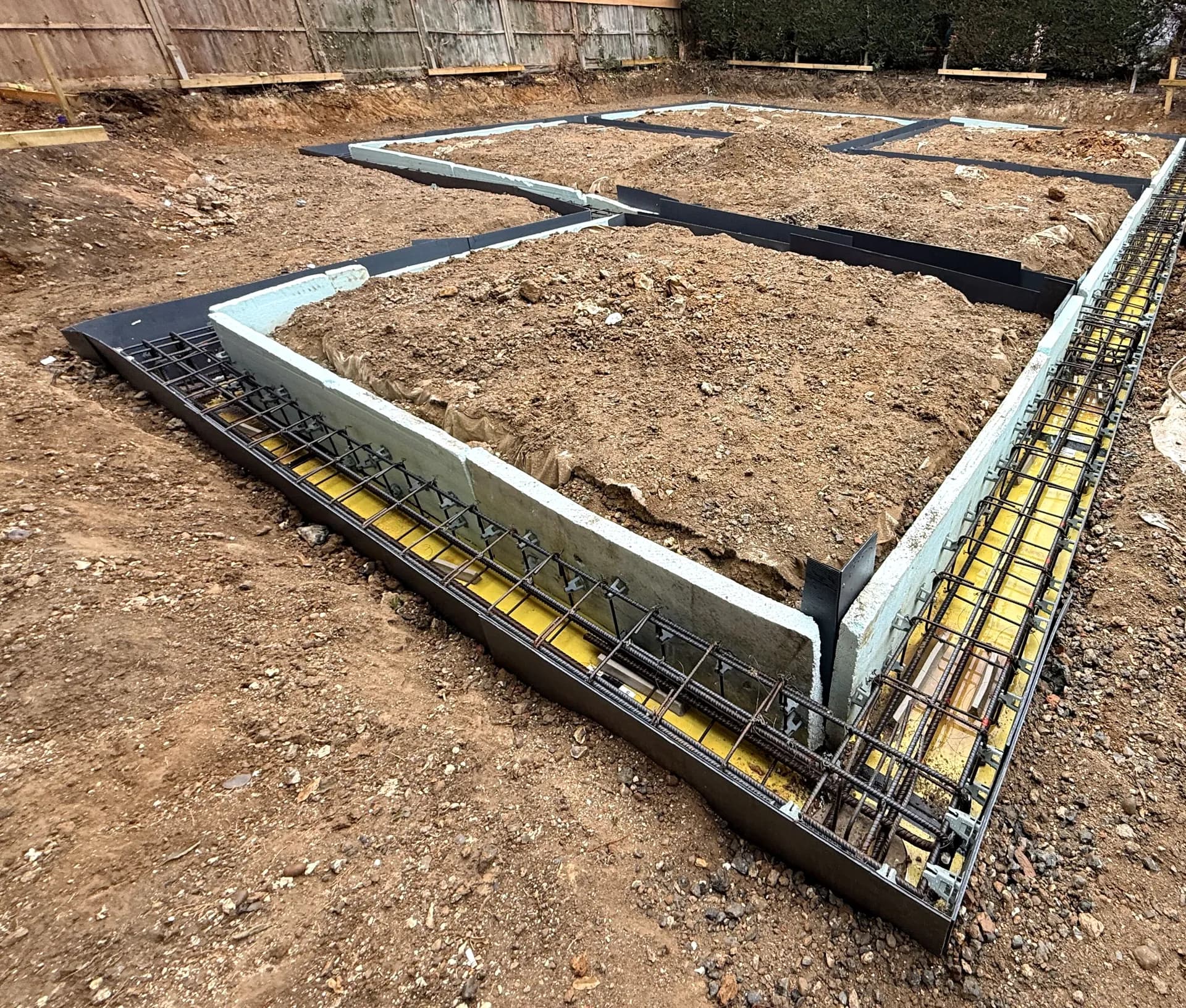

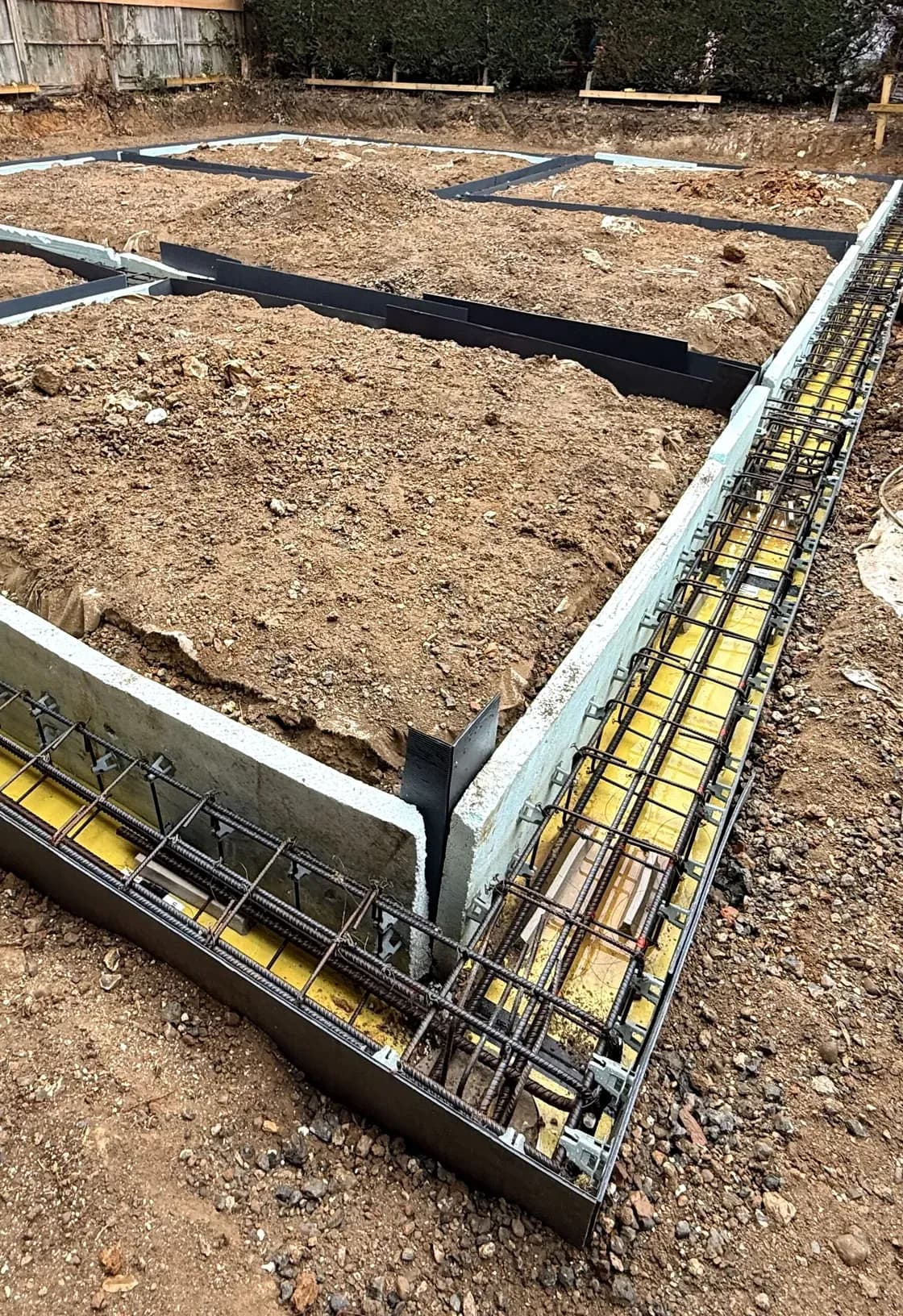

The ground beams are 450 × 450mm reinforced concrete in C28/35, with H16 top bars, H25 bottom bars and H10 links.
Work started on 22 September 2026. All 14 piles were integrity tested on 7 October 2026 and all passed.
Complete technical breakdown of the piling and foundation works delivered at Harpenden, Hertfordshire.
300mm
Made ground over very stiff clay, with tree roots in the upper clay
Hutte piling rig
Piles: cages of 4 H12 bars. Ground beams: H16 top bars, H25 bottom bars and H10 links
Ground beams: C28/35
450 × 450mm reinforced concrete ground beams
All 14 piles integrity tested on 7 October 2026. All passed
Started 22 September 2026. Piling on 23 and 24 September. Piles tested 7 October 2026
A former swimming pool under part of the footprint. Neighbouring houses close by
