15 SFA open-bored mini piles and a reinforced concrete raft slab on a void former for a block of single-storey garages in Mill Hill, London.
Geovex installed a new piled raft foundation for a block of single-storey garages to be rebuilt on Sylvan Avenue in Mill Hill, London.
A shared drain ran a little over three metres from the work, too close for driven piles, so the piles were bored.
The piles are Sectional Flight Auger (SFA) open-bored mini piles of 300mm diameter. There are 15 piles, with working loads of 50kN to 100kN. Each has a cage of four H12 bars. The piles were installed over two days, on 14 and 15 April 2026.
The pile design takes the ground as London Clay under thin made ground.

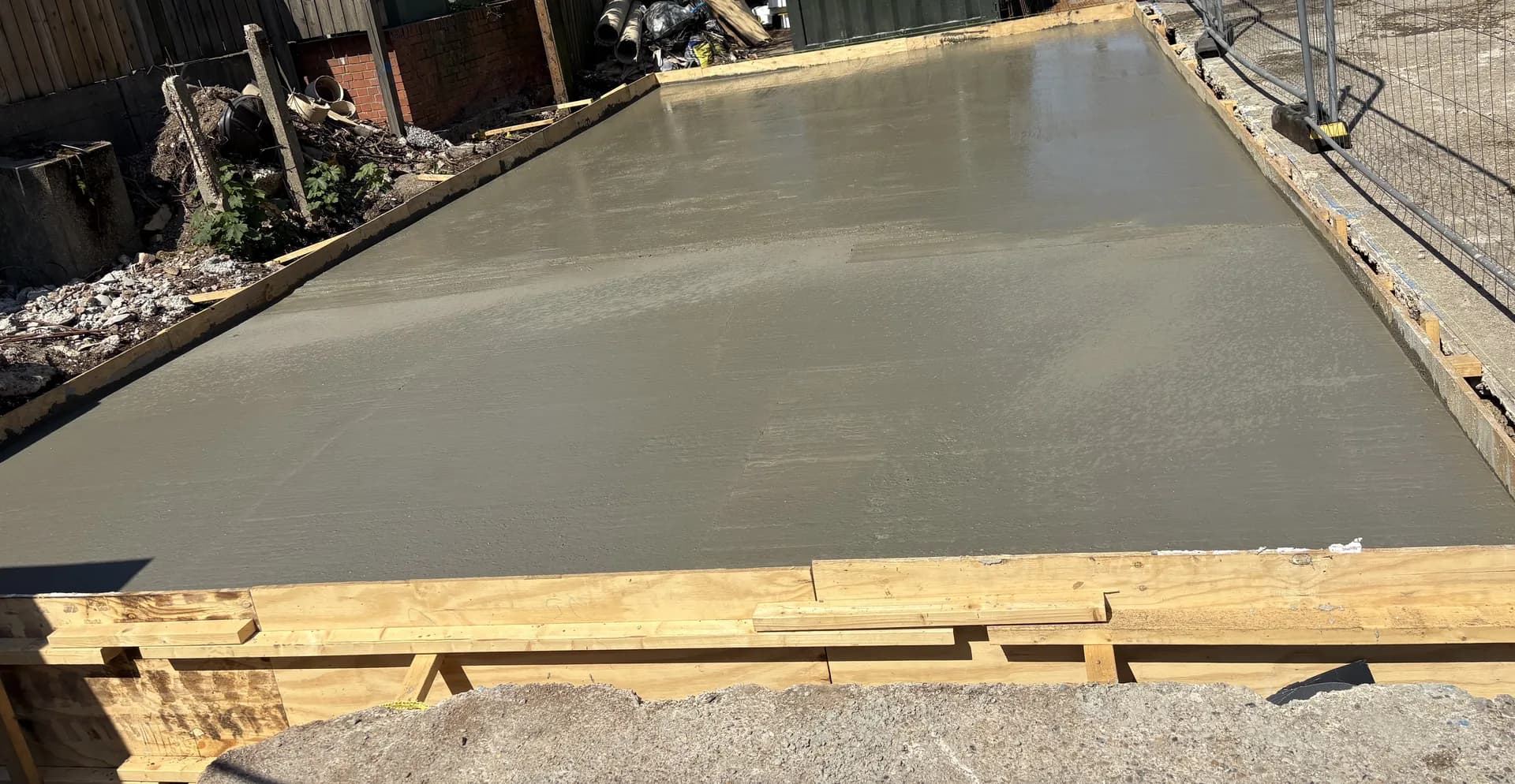

The raft is 250mm reinforced concrete of about 57m², in C28/35 concrete. It was reinforced with A393 steel mesh, top and bottom, and cast on a 225mm void former for anti-heave protection.
Geovex was on site from 1 to 27 April 2026, working on twelve days.
Complete technical breakdown of the piling and foundation works delivered at Mill Hill, London.
300mm
London Clay under thin made ground, as taken in the pile design
Piles: cages of 4 H12 bars. Raft: A393 mesh top and bottom
C28/35
250mm reinforced concrete raft of about 57m² on a 225mm void former
1 to 27 April 2026, working on twelve days. Piles installed on 14 and 15 April
A shared drain a little over three metres from the work
