36 SCD mini-piles and a 164m² reinforced concrete raft slab for a new-build home next to a historic signal box in rural Hampshire. Layered clay and sand soils required driven piles to 8m with full anti-heave protection.
This project delivered the complete piled foundation for a new-build residential property at Signal Box Farm, a rural site in Burghclere near Newbury. The ground investigation revealed challenging layered soils — alternating bands of clay and sand extending to 18m depth — making a piled solution essential for long-term stability.
Our team installed 36 Steel Cased Driven (SCD) mini-piles at 220mm diameter, each driven to an average depth of 8 metres using a 0.5-tonne hammer. Individual pile loads ranged from 50kN to 140kN depending on position, with every pile reinforced with 2H16 rebar to 6m depth. All piles were set-tested to confirm bearing capacity.

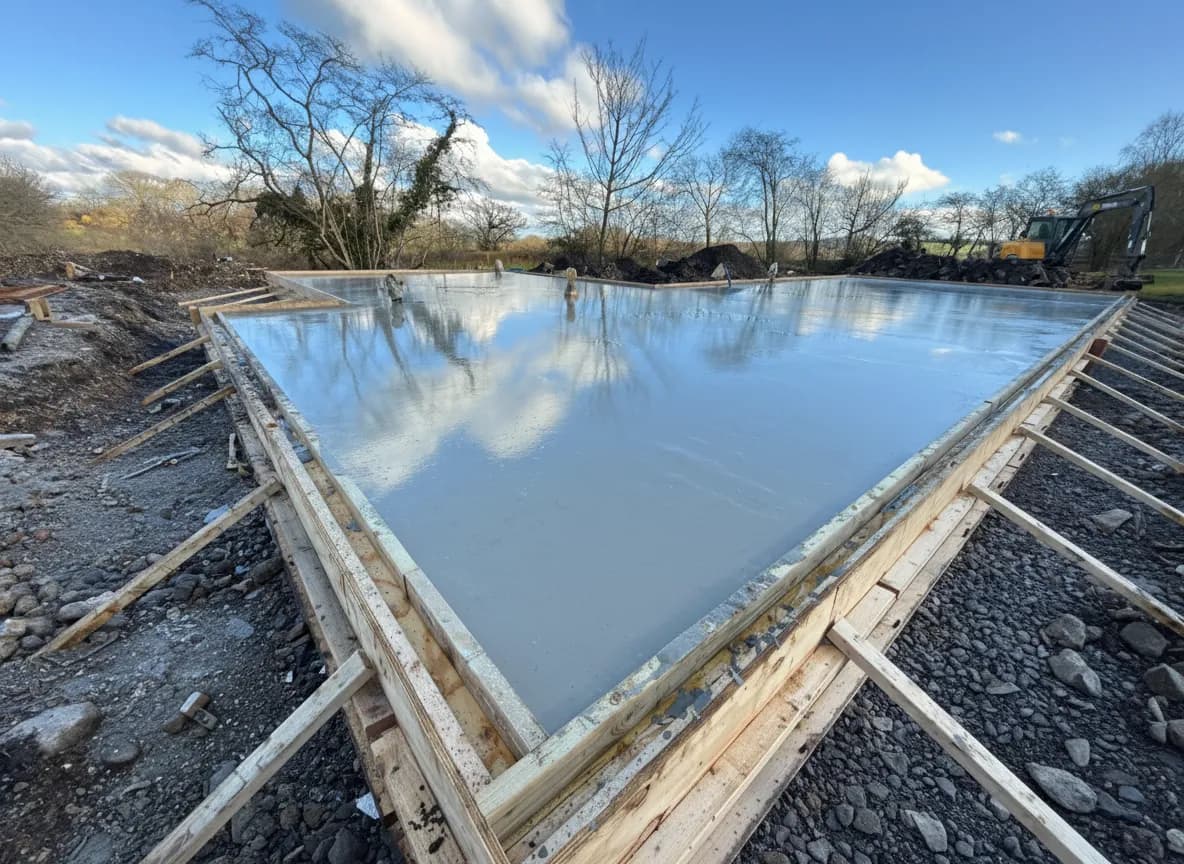

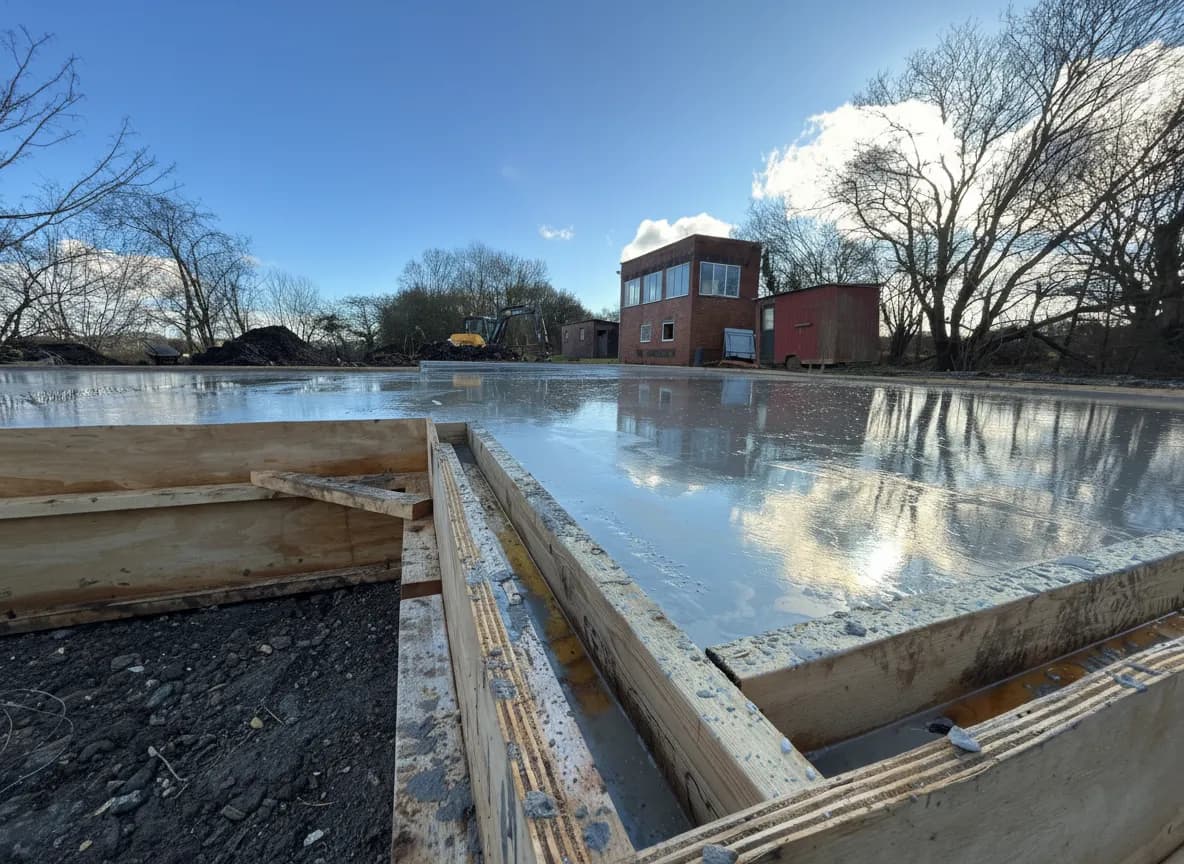

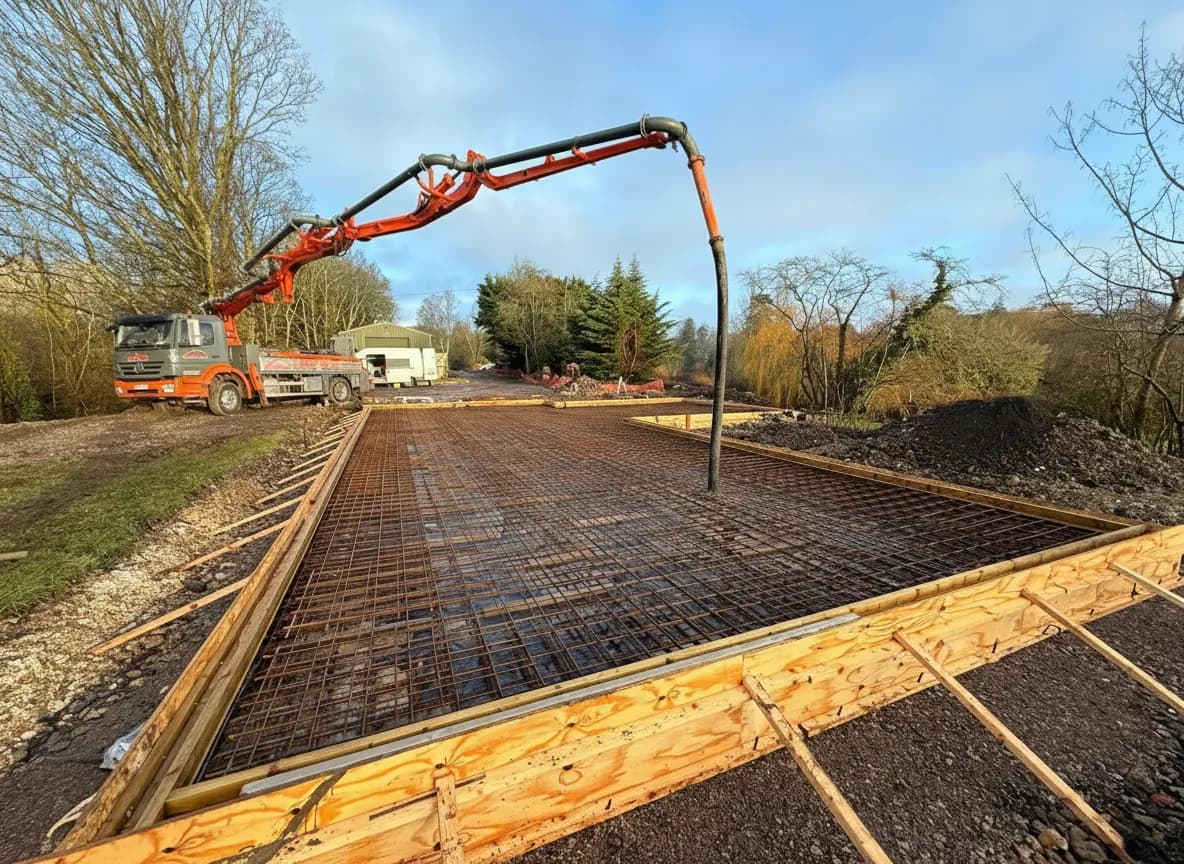

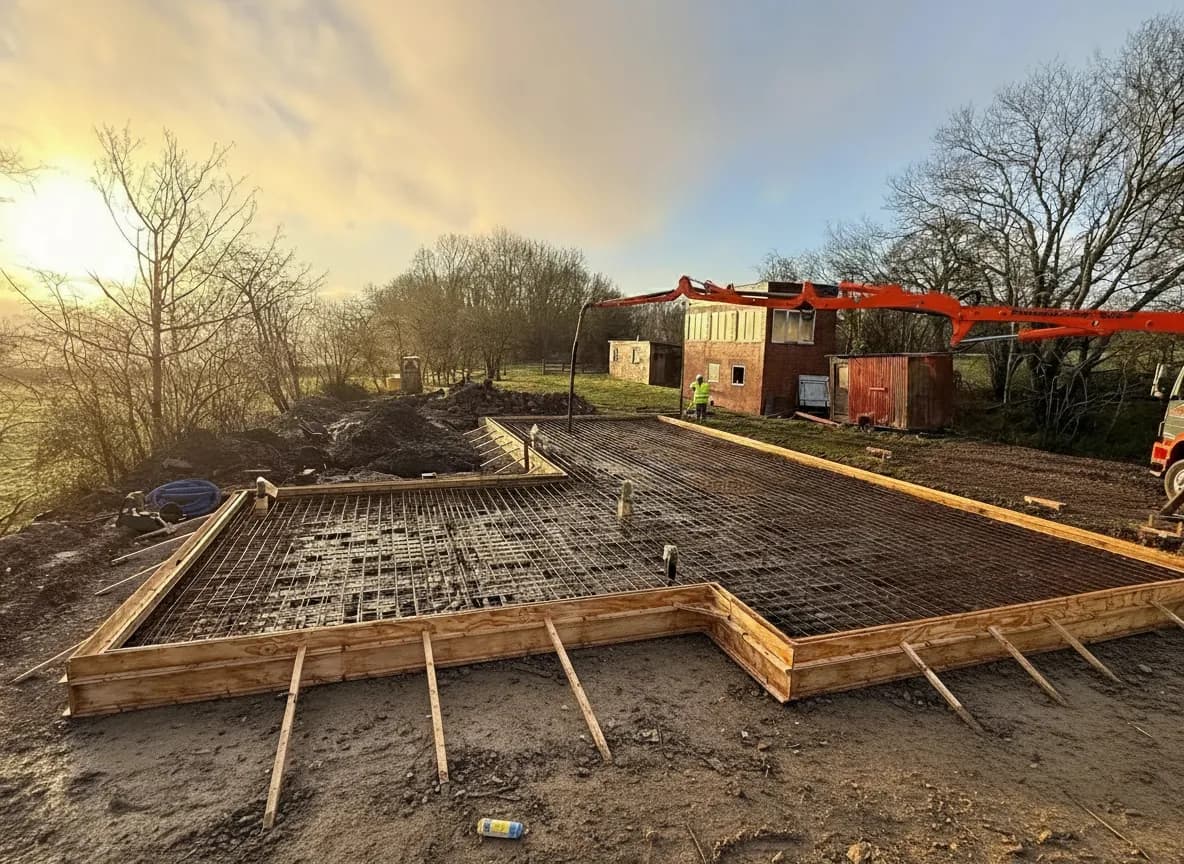

Following piling, we constructed the 164.5m² reinforced concrete raft slab at 250mm thickness using C28/35 grade concrete with A393 mesh reinforcement top and bottom. The slab incorporated 160mm Cellcore HX-S anti-heave void formers beneath to protect against clay heave, plus timber edge formwork and a brick edge toe detail.
The entire project — from mobilisation through piling to the finished slab pour — was completed within 12 days, on programme and to the engineer's specification.
Complete technical breakdown of the piling and foundation works delivered at Burghclere, Hampshire.
50–140kN per pile
Made Ground over Clay & Sand (layered to 18m)
164.5m²
250mm RC with A393 mesh
160mm Cellcore HX-S
C28/35 DC-3
12 days
