64 steel cased driven mini piles of 150mm diameter and reinforced concrete ground beams for four new-build chalet bungalows on Lydd Road in New Romney, Kent.
Geovex installed the piled foundations and reinforced concrete ground beams for four new-build chalet bungalows on Lydd Road in New Romney, Kent.
We proposed driven steel cased piles because they produce no spoil and need far less piling mat and enabling work than CFA piles.

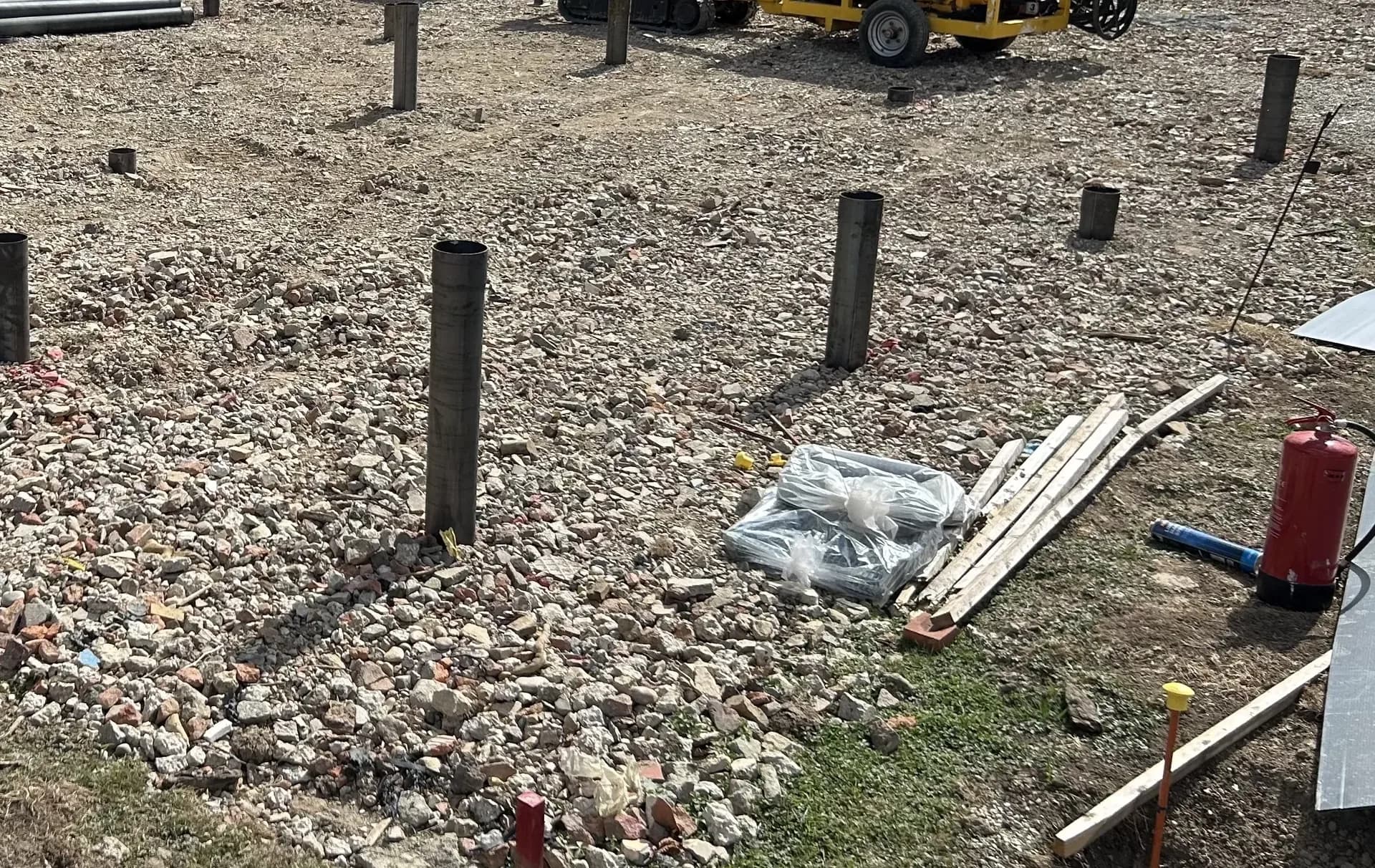

The piles are Steel Cased Driven (SCD) mini piles of 150mm diameter. Each steel casing was driven with a 0.25 tonne drop hammer, then reinforced with two H16 bars. There are 64 piles, 16 under each bungalow, with safe working loads of 75kN to 122kN. Piling ran from 7 to 22 August 2026.
The ground is soft alluvial clay over sand, with groundwater.

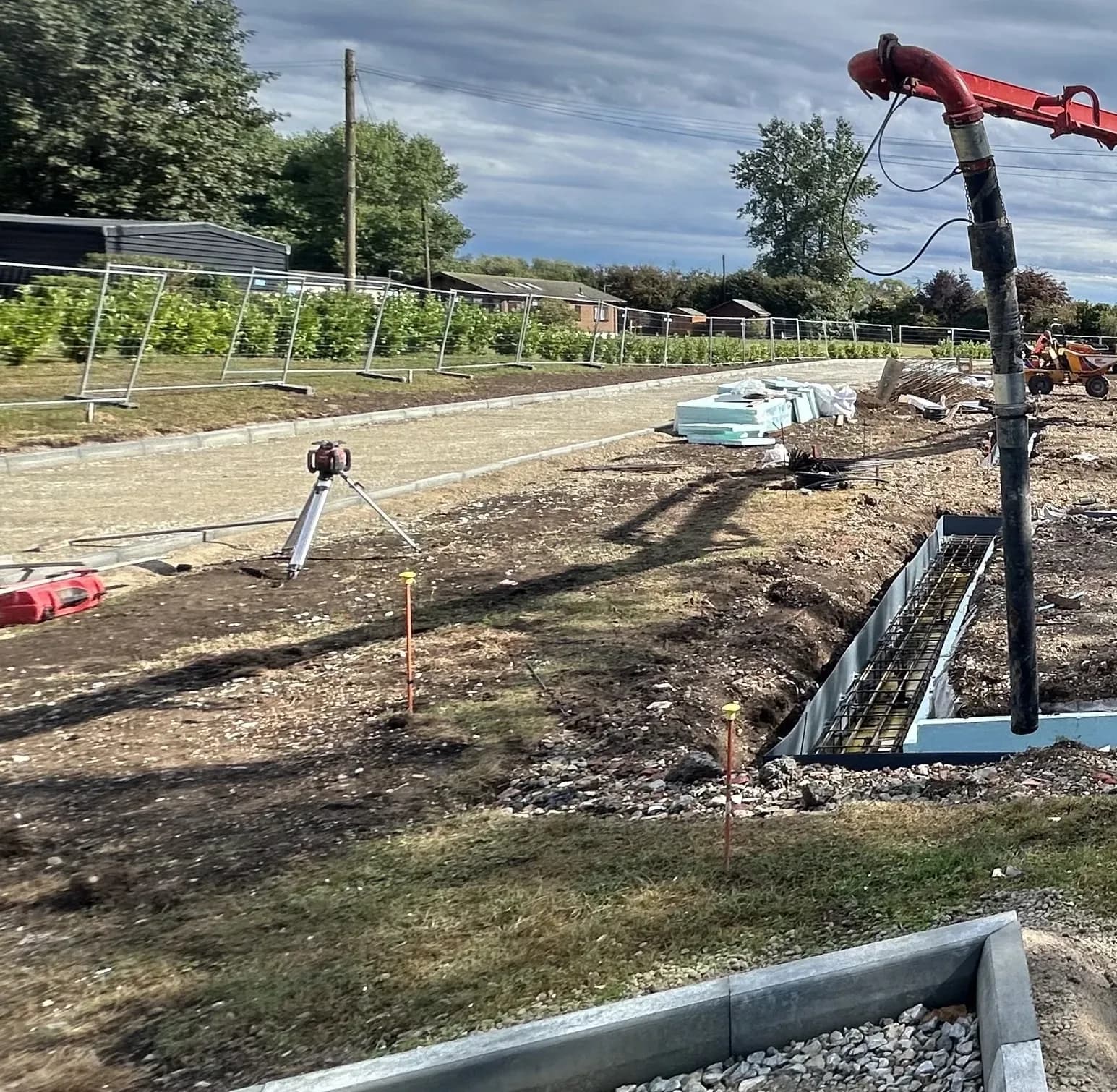

The ground beams are 600 × 450mm reinforced concrete on a void former, with four H16 bars top and bottom and H10 links. They were poured in two stages, on 27 August and 4 September 2026.
All 64 piles were integrity tested and all passed.
Complete technical breakdown of the piling and foundation works delivered at New Romney, Kent.
150mm
Soft alluvial clay over sand, with groundwater
Drop hammer piling rig with a 0.25 tonne hammer
Piles: 2 H16 bars. Ground beams: 4 H16 bars top and bottom, with H10 links
600 × 450mm reinforced concrete ground beams on a void former
All 64 piles integrity tested. All passed
Piling from 7 to 22 August 2026. Ground beams poured on 27 August and 4 September 2026
