30 SCD mini-piles and a 154m² RC raft slab for a new commercial dairy building in Riseley, Berkshire. London Clay ground and nearby mature trees demanded a piled foundation — delivered on programme and budget.
Our team delivered the piled foundation for a new dairy building at Village Maid Cheese in Riseley, near Reading. The award-winning cheesemaker needed a larger production facility, requiring a robust foundation on a rural site with mature Hybrid Black Poplar trees within the zone of influence.
The site investigation at Riseley revealed non-shrinkable sandy clay in the upper 1.5m, underlain by London Clay. Although the near-surface soils were favourable, the presence of significant trees at 21m from the building footprint and the expected shrinkable clay at depth made a piled solution the right choice for long-term structural stability.

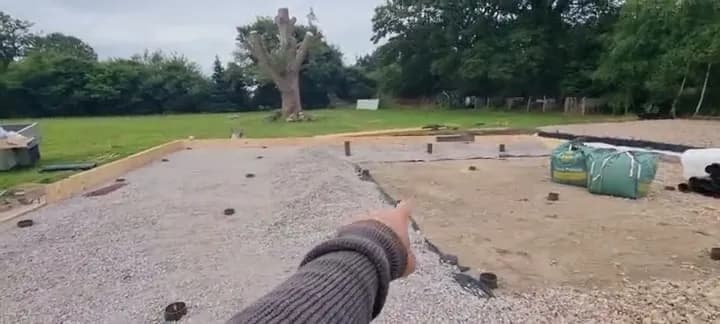

We installed 30 Steel Cased Driven (SCD) mini-piles at 150mm diameter, each driven to firm bearing in the London Clay. Safe working loads ranged from 70kN to 160kN across the pile layout, with all piles reinforced with 2H16 rebar cages. Every pile was set-tested on site to confirm bearing capacity before the slab pour.

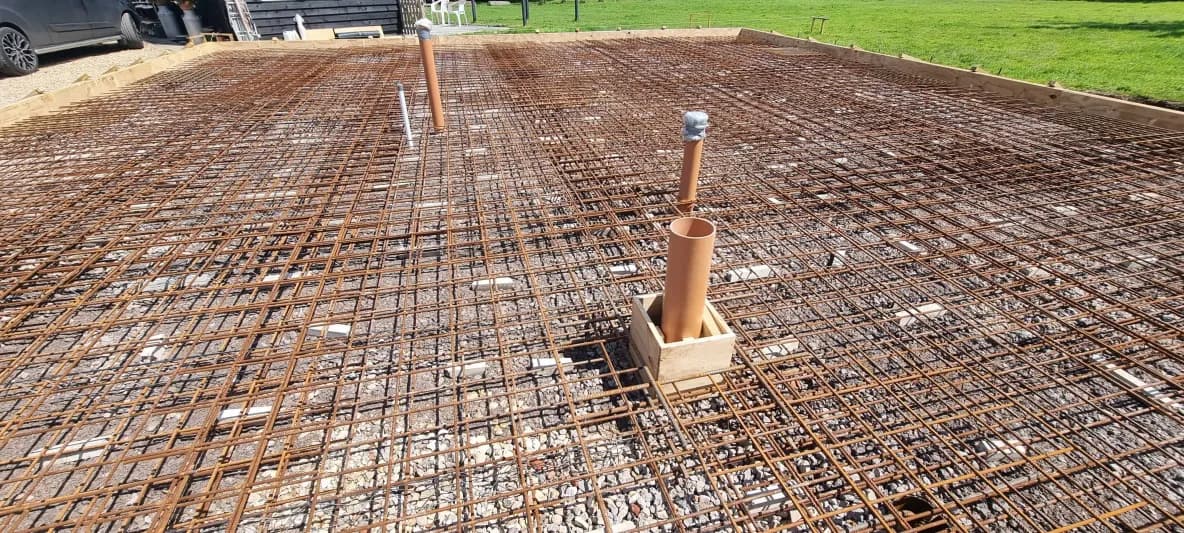

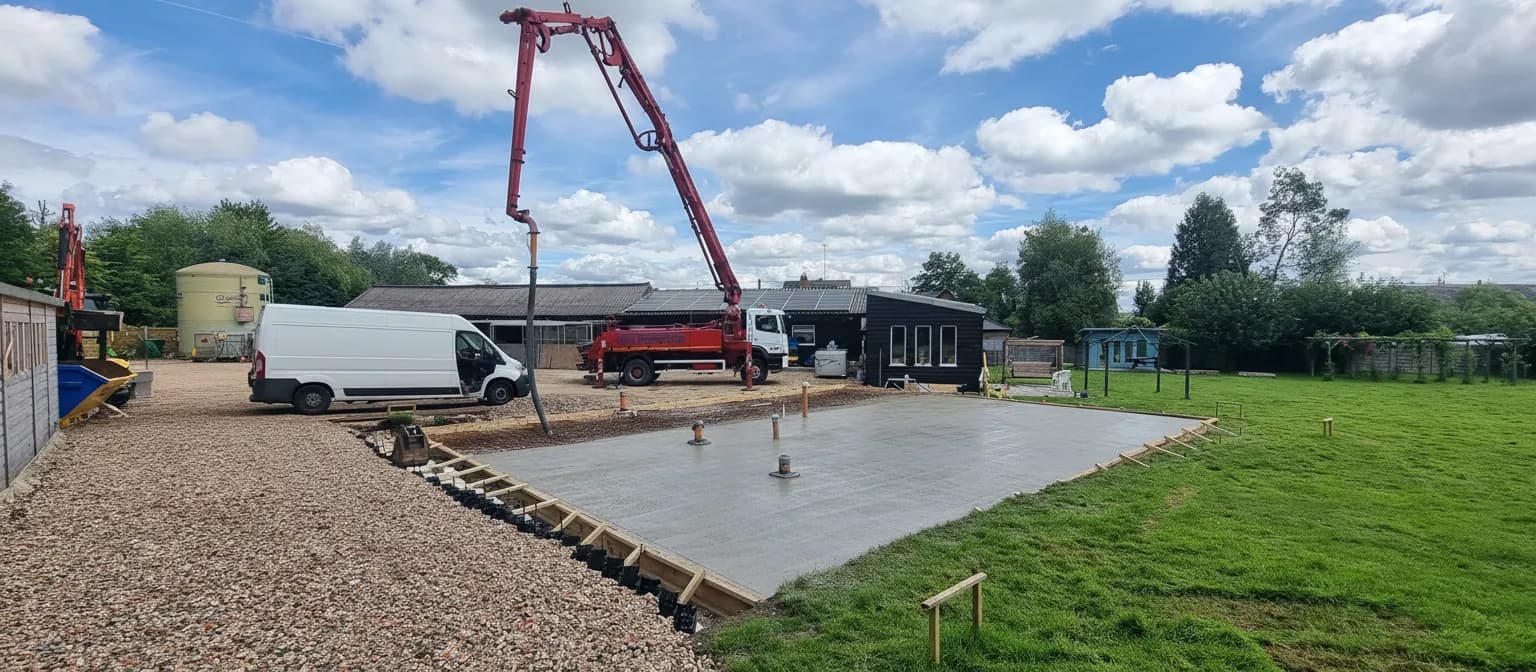

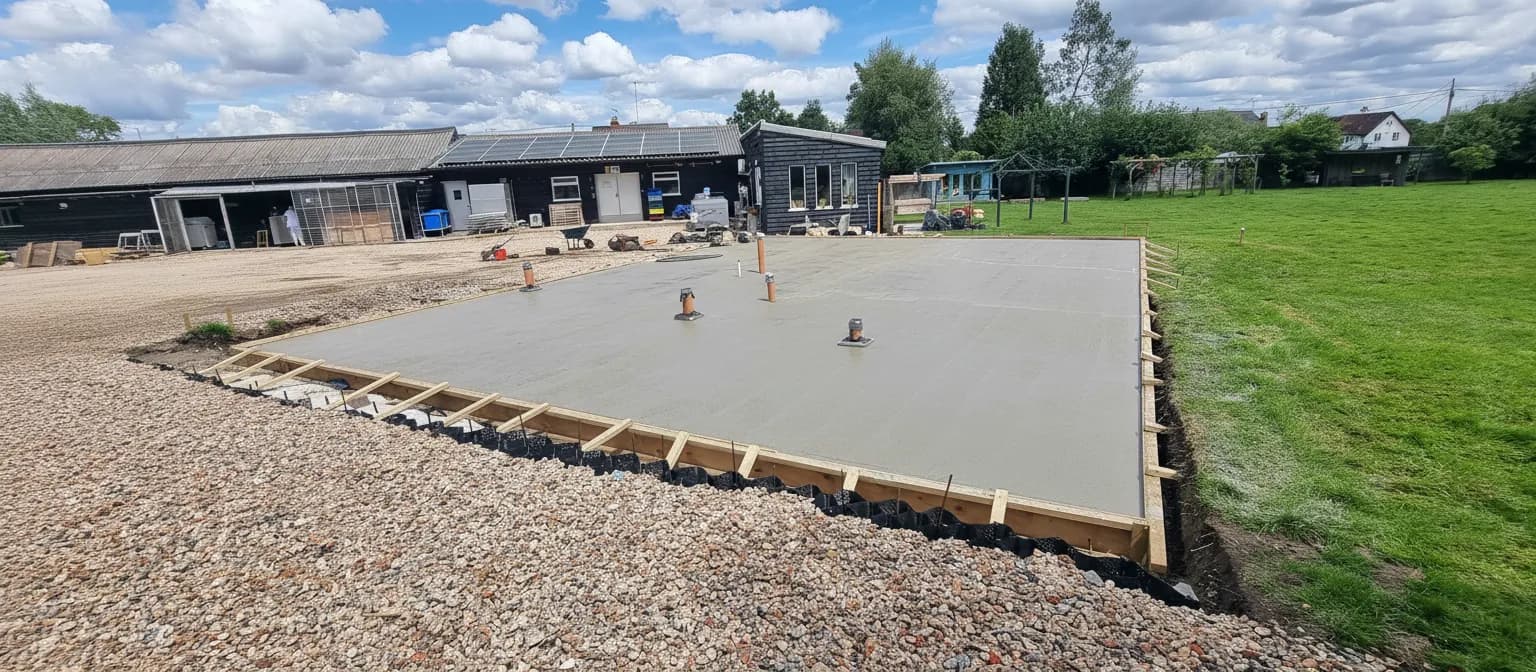

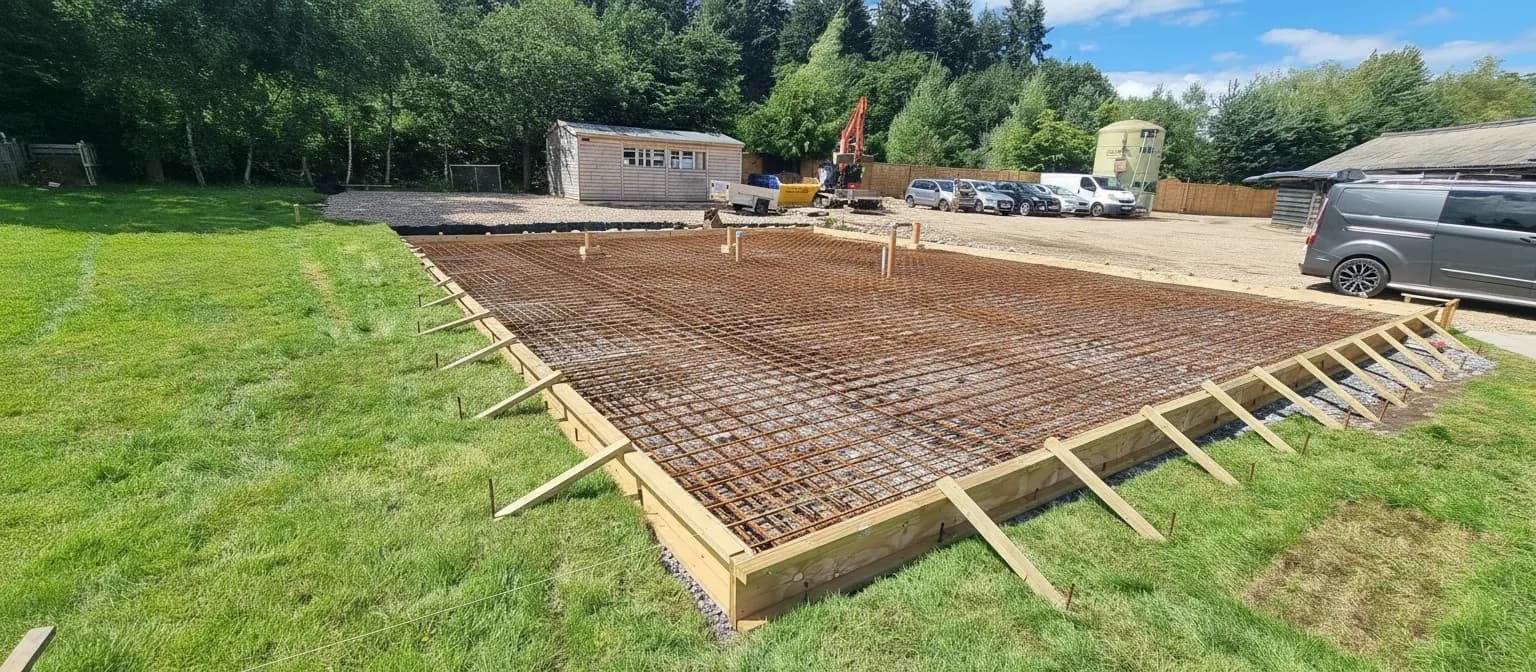

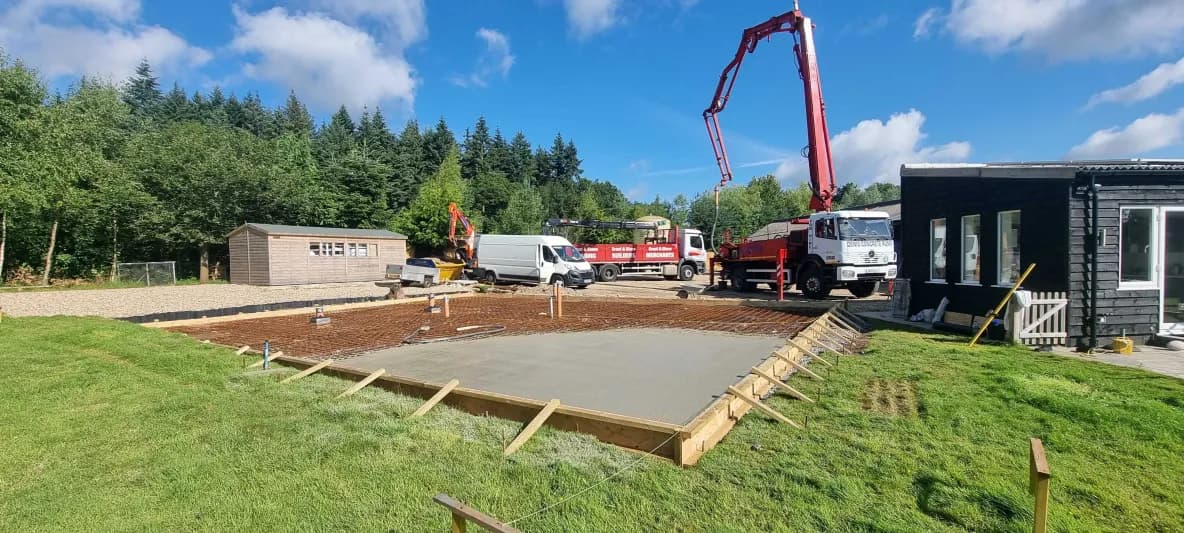

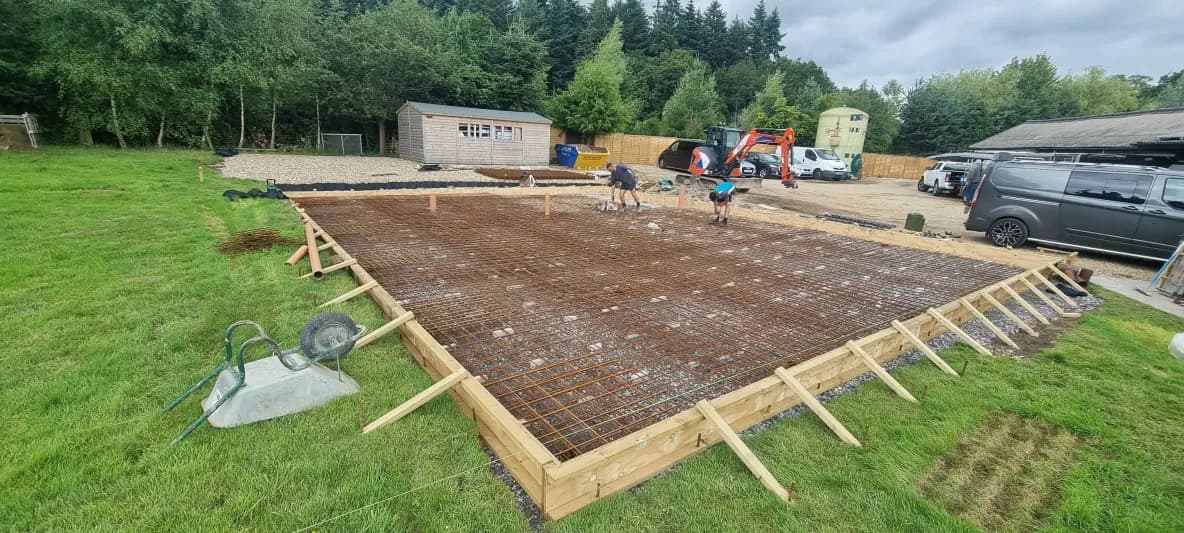

The 154m² reinforced concrete raft slab was cast at 250mm thickness using C28/35 grade concrete, completing the foundation for the new dairy. The building inspector praised the quality of workmanship, and the entire project was delivered within four weeks from mobilisation to handover - on programme and on the original quote.
Complete technical breakdown of the piling and foundation works delivered at Riseley, Berkshire.
Sandy Clay over London Clay
C28/35 DC-2
Slab: 154m², 250mm RC
4 weeks
