Eight 220mm steel cased driven mini piles and two reinforced concrete bases for two LED video screens at a football stadium on Hayes Lane, Bromley.
Geovex installed the piled foundations and two reinforced concrete bases for two freestanding LED video screens at a football stadium on Hayes Lane, Bromley. Each screen is designed to stand on a single steel column, with one base under each column.
Screw piles were considered, because the work sat between buried services. They were ruled out. The ground was not favourable for them, they carried more risk of problems on this site, and the engineer had specified driven steel cased piles.
The piles are 220mm Steel Cased Driven (SCD) mini piles. Each steel casing was driven with a 0.5 tonne drop hammer, then reinforced with four H16 bars and filled with concrete. There are eight piles, four under each base.
Each pile is designed for 150kN in compression, 30kN in tension and 25kN of lateral load.
The ground is made ground over sand and clay, with groundwater.

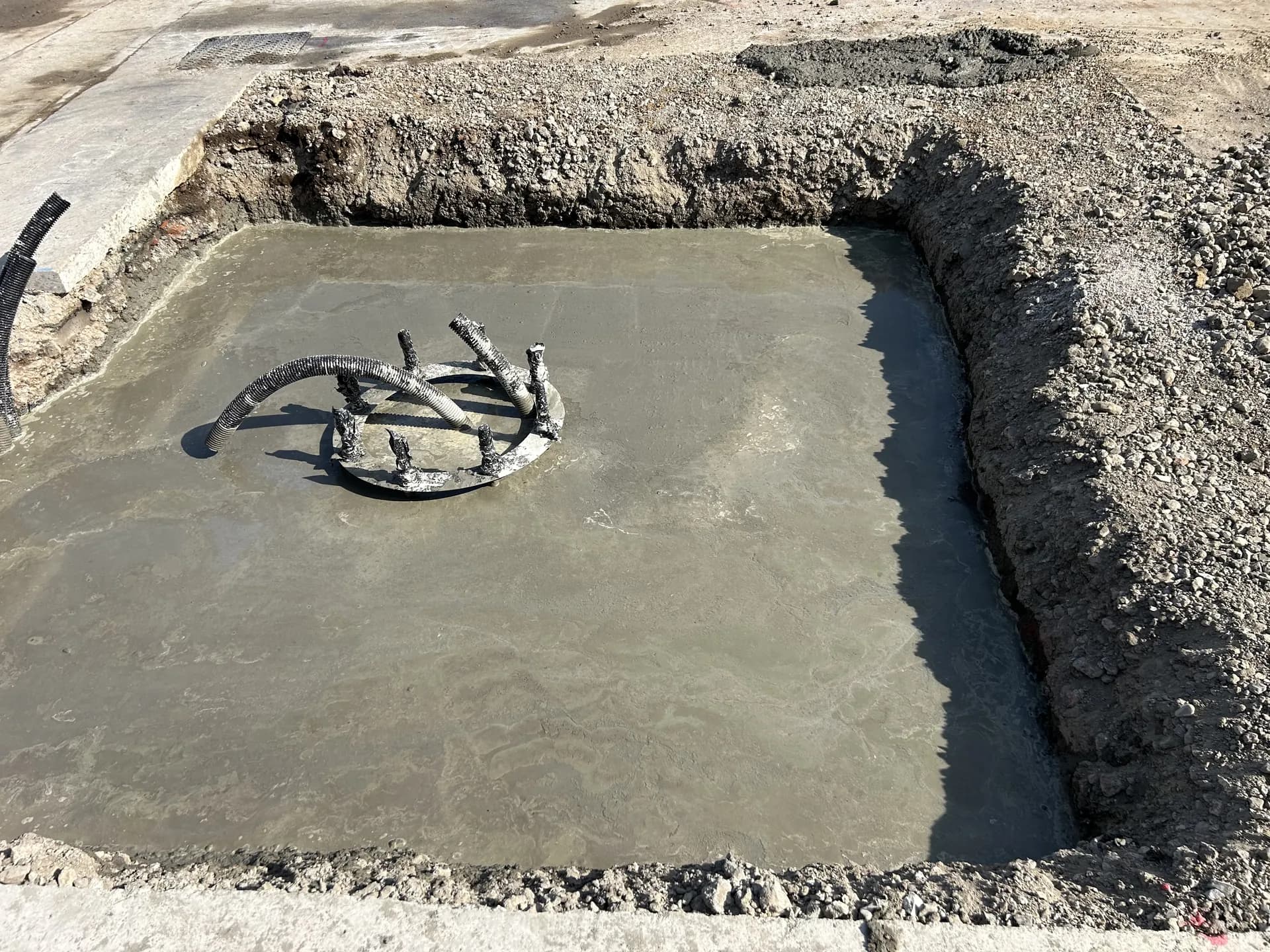

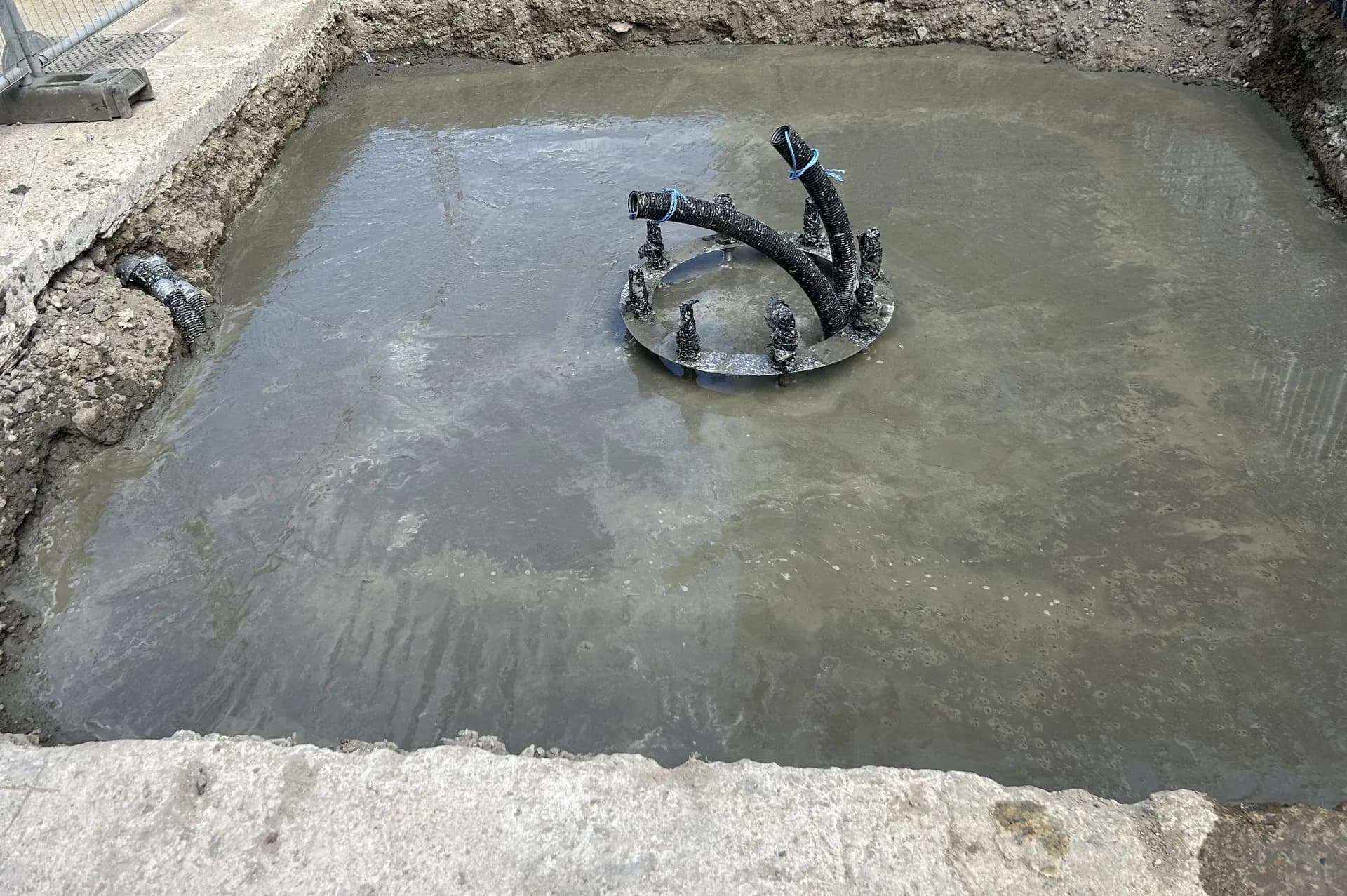

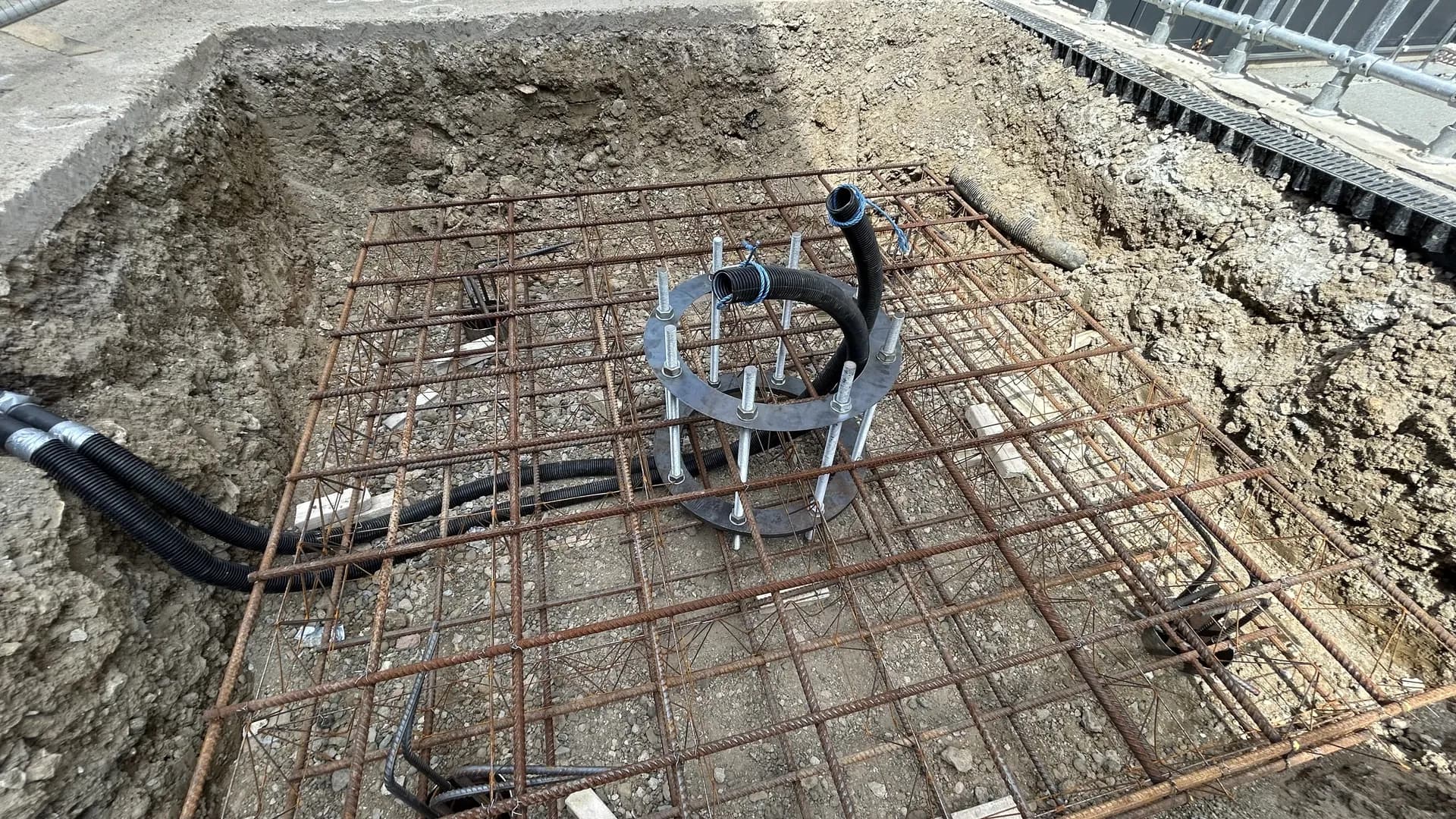

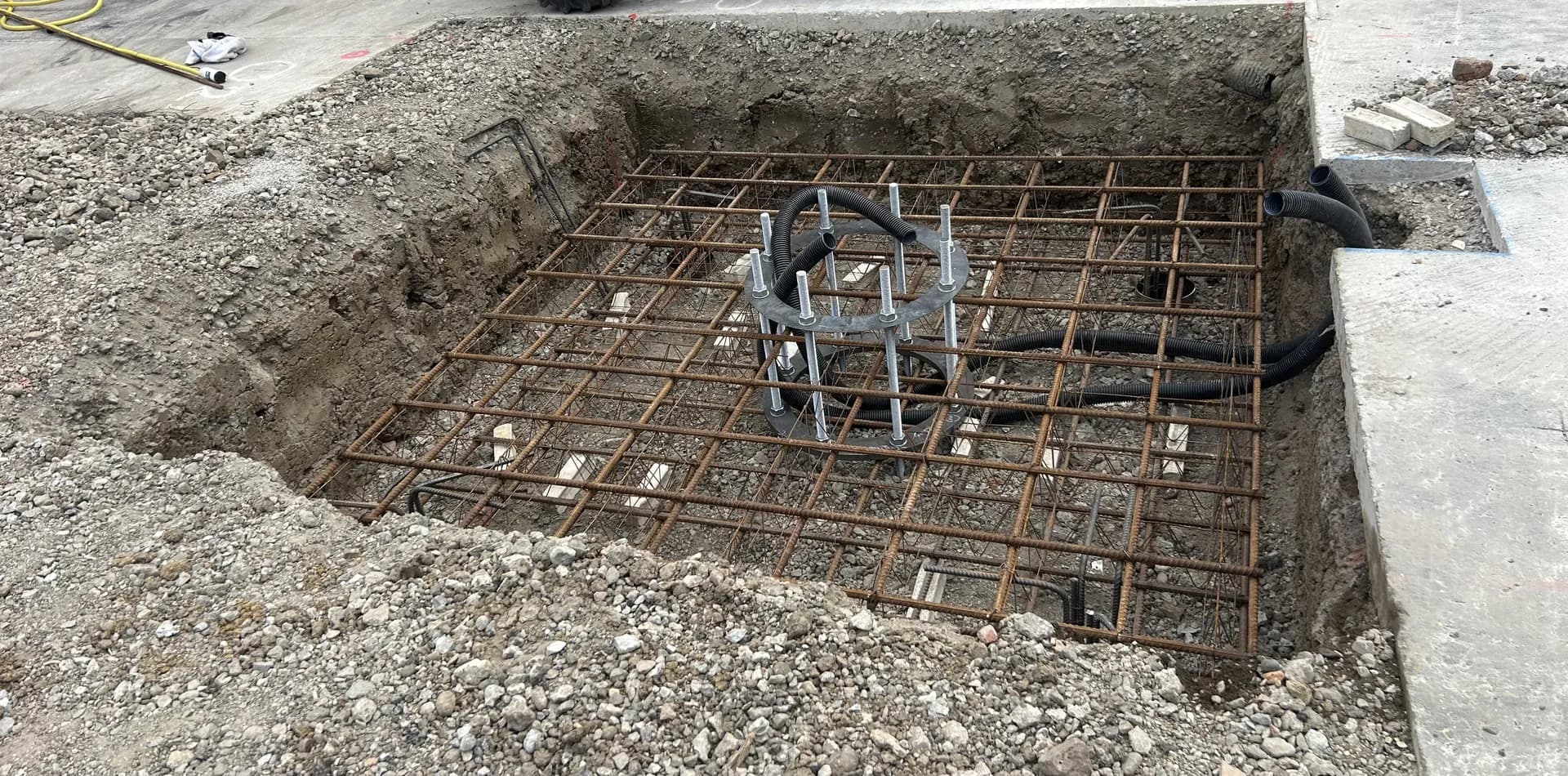

Each base is a reinforced concrete pile cap about 2.77m square and 600mm thick, with H20 bars each way, top and bottom.
Work started on site on 1 July 2026, and the first four piles were driven that day.
Complete technical breakdown of the piling and foundation works delivered at Bromley.
220mm
Made ground over sand and clay, with groundwater
Drop hammer piling rig with a 0.5 tonne hammer
Piles: 4 H16 bars. Bases: H20 bars each way, top and bottom
Two reinforced concrete pile caps, each about 2.77m square and 600mm thick
Started on site on 1 July 2026
Work between buried services
