38 CFA piles and a 116m² RC raft slab for a residential rear extension in Chichester. Extremely hard flint-laden ground challenged drilling, but the team adapted on site to deliver on budget.
Our team delivered the piled foundation for a substantial rear extension to a residential property on The Avenue in Chichester, West Sussex. The extension required a steel-framed structure with a piled raft slab, and with 20 protected trees close to the works, Continuous Flight Auger (CFA) piling was chosen as the most efficient method for the ground conditions.
The pile design was based on British Geological Survey data, which indicated Made Ground overlying sand and gravel with chalk at approximately 4-6m depth. On site in Chichester, the ground proved far more challenging than expected - extremely hard flint deposits wore down two lead augers and all follower augers, requiring tooling repairs twice during the programme.
We installed 38 CFA piles at 300mm diameter, each founded into competent chalk. Several bores initially collapsed in the upper strata, but by drilling further into the chalk, the bores lined themselves and held. This technique was adopted on 11 production piles. Six piles were drilled to practical refusal in the dense flint, and additional piles were installed to compensate for reduced depths. Every pile underwent sonic integrity testing before the slab pour.

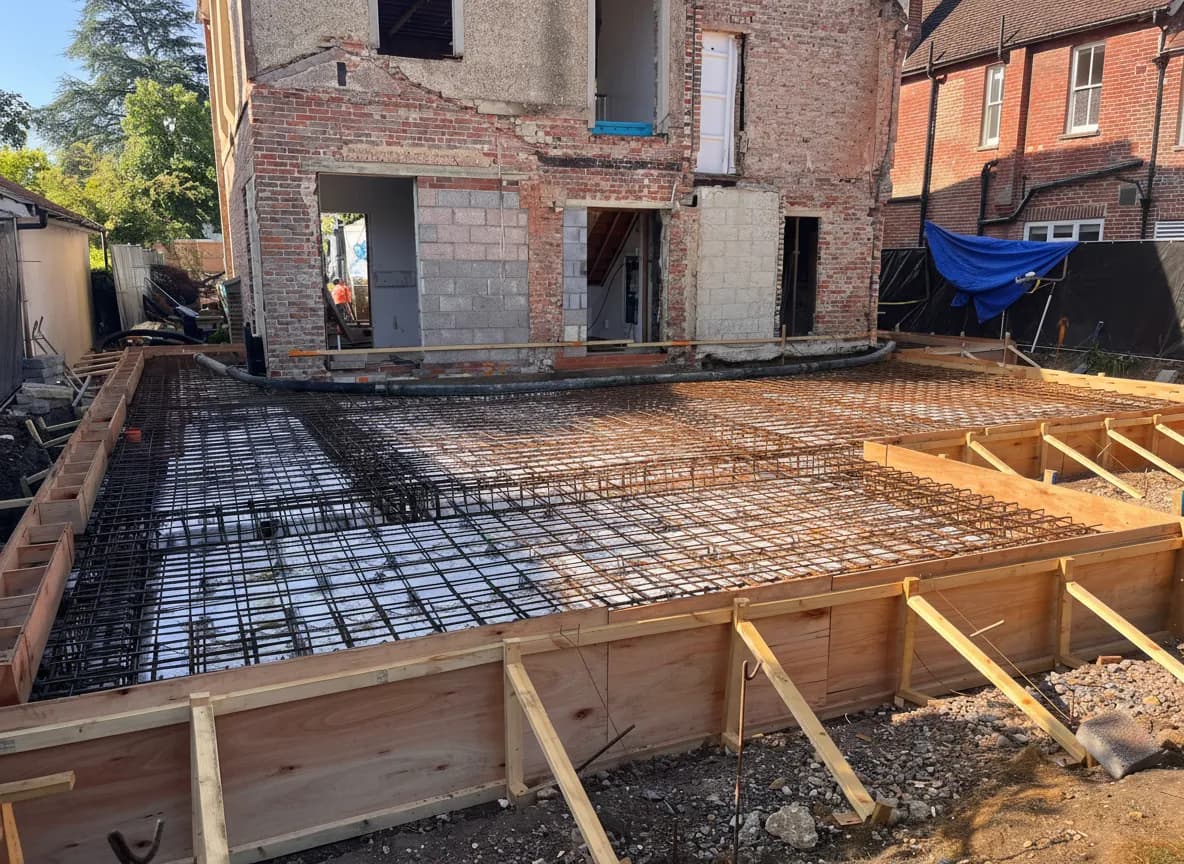

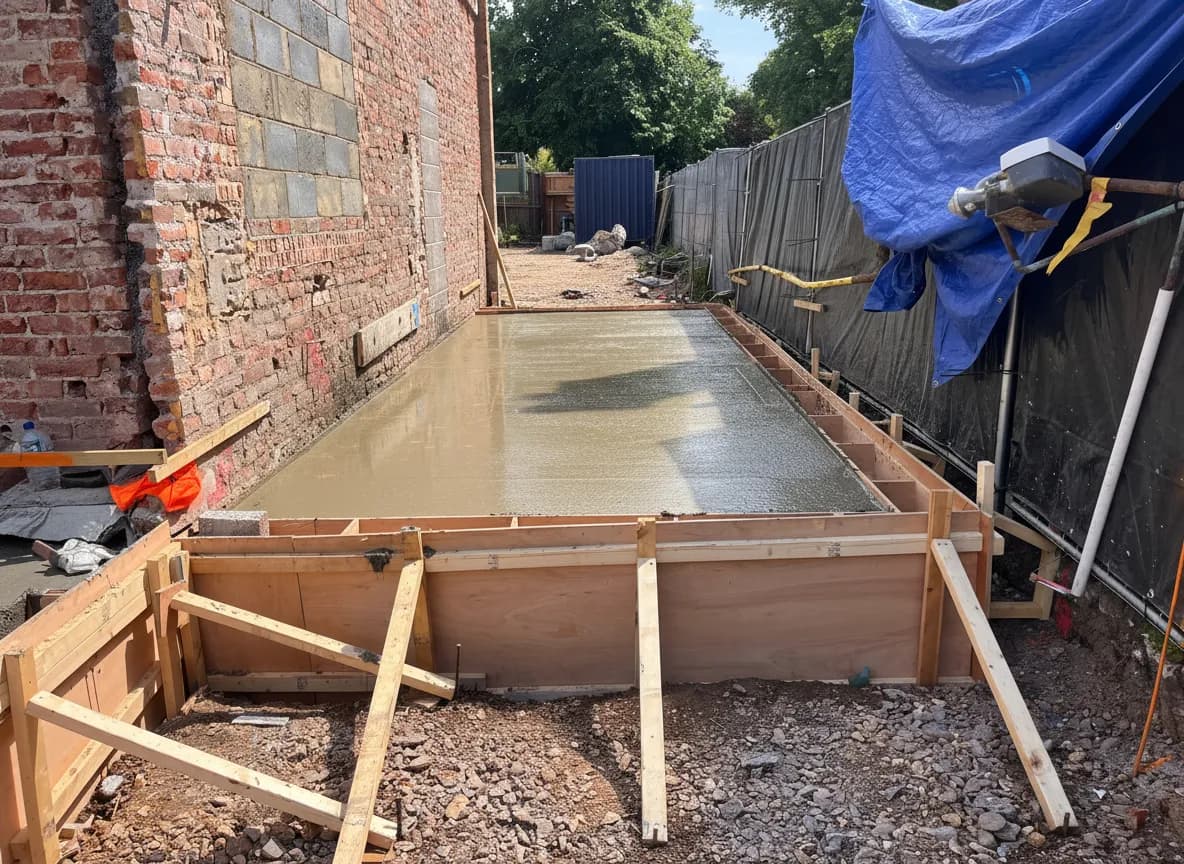

The 116m² reinforced concrete raft slab was cast at 200mm thickness using C32/40 grade concrete, with 225mm Cellcore void formers beneath to protect against clay heave. Despite the challenging ground, the complete piling and foundations package was delivered in approximately five weeks.
Complete technical breakdown of the piling and foundation works delivered at Chichester, West Sussex.
Made Ground over Sand, Gravel & Flint over Chalk
C32/40
Slab: 116m², 200mm RC with A393 mesh. Anti-heave: 225mm Cellcore HX-S
5 weeks
